OMS EURO Gypsum Block

product image

Description

OMS Euro Gypsum Block is a solid gypsum block manufactured according to European standard for constructing interior non-load bearing partitions .OMS Euro Gypsum Block is fire resistant and is an excellent material for sound and thermal insulation.

OMS “GB” Block is a standard grade blocks which is suitable for universal applications in most interior environments. OMS “Hydro” Block is very suitable to be used at rooms with higher moisture such as kitchen , shower room etc. and is
also commonly used as the first row on the ground to minimise ground moisture pick up . OMS “HD ” Block is a High Density grade blocks provide better acoustic properties.

Features & Benefits
  • Light weight and fast construction
  • Thinner partition wall and more internal usable space
  • Better thermal and sound insulation – more comfortable living environment
  • Readily fire resistant building material.
  • OMS ECO-Matt “ 0” VOC &“0” Emission Wall finishing system .

Performance & Application Data

( Product Data )   Medium Density     High Density
Block Type  Normal  Hydro  Normal   Hydro
Thickness ( mm ) 70, 80 ,100 70, 80 ,100 70, 80 ,100 70, 80 ,100
Dimension: ( mm )
 		 500 x 660
500 x 450		 500 x 660
500 x 450		 500 x 660
500 x 450		 500 x 660
500 x 450
Color  Natural  Blue  Pink  Grey
Compressive Strength 7.3N / mm2   7.3N / mm2 12.4N/mm2 12.4N/mm2
Fire Resistance ( Hours ) 70 mm- 2hr
100mm-4hr		 70 mm- 2hr
100mm-4hr		 70 mm- 2hr
100mm-4hr		 70 mm- 2hr
100mm-4hr
Sound Insulation ( STC ) 40 40 42 42
Thermal Insulation
 		 ~ 0.3 W/( m.K) ~ 0.3 W/( m.K) ~ 0.4W/( m.K) ~ 0.4W/( m.K)
Water Absorption
( EN-12859 )		   N/A  < 5%   N/A  < 5%
Average use of Adhesive
( OMS 621-HS ) kg/m2		 70 mm- 1.2kg
80mm- 1.3kg
100mm-1.5kg		 70 mm- 1.2kg
80mm- 1.3kg
100mm-1.5kg		 70 mm- 1.2kg
80mm- 1.3kg
100mm-1.5kg		 70 mm- 1.2kg
80mm- 1.3kg
100mm-1.5kg
Average use of Adhesive
( OMS 622-SF ) kg/m2		 0.3kg / m2 0.3kg / m2 0.3kg / m2 0.3kg / m2

OMS EURO Gypsum Block
掛重測試
Anchor Loading Test
 OMS EURO Gypsum Block
容易安裝&快捷省時
Quick Installation & Time Saving
OMS EURO Gypsum Block

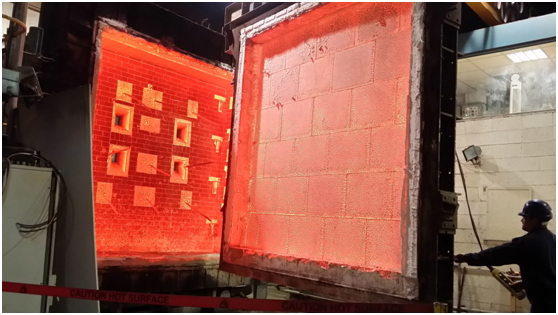

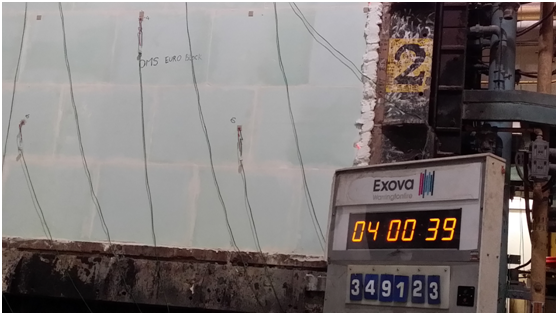

四小時防火測試
4 Hour Fire Test
 OMS EURO Gypsum Block
容易安裝&快捷省時
Quick Installation & Time Saving
OMS EURO Gypsum Block
四小時防火測試
4 Hour Fire Test
 OMS EURO Gypsum Block
撞擊測試
Impact Test




Technical Sheets

Please contact us to receive the latest data sheets
